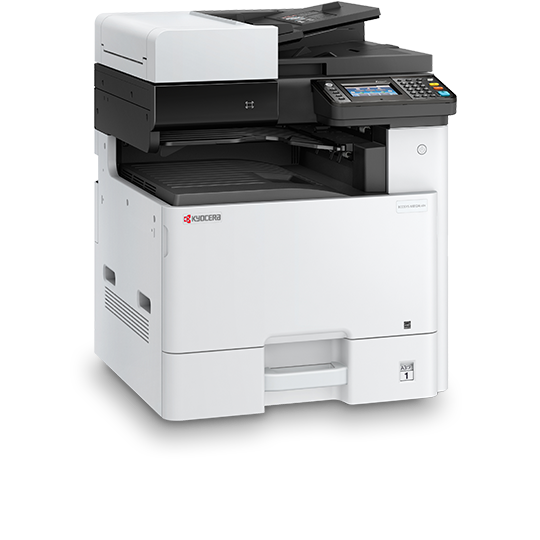

    mfp-540x540-angled-ecosysM8124cidn

    ECOSYS M8124cidn

    The ECOSYS M8124cidn combines exceptional business colour and superior functionality with low total cost of ownership.

    • High speeds up to 24 ppm b&w / 24 ppm colour
    • 4.3" colour TSI - intuitive user interface
    • High quality output up to 1200 x 1200 dpi
    • Standard Apple AirPrint, Google Cloud Print, Mopria Print Service and KYOCERA Mobile Print support
    • HyPAS-enabled, and KNM, MyQ, and KFS ready
    Engine speed

    24 ppm b&w / 24 ppm colour

    Resolution

    Up to 1200 x 1200 dpi

    Scan speed

    50 ipm simplex / 16 ipm duplex

    Time to first print

    7.5 sec. b&w /10.2 sec. colour

    ECOSYS makes your office more sustainable and efficient

    Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

    • people at work

      Multifunctional products for day-to-day tasks

      Highly regarded by the industry and highly rated by numerous testing organizations, Kyocera boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant color, to match the needs of any business.

      Multifunctional products for day-to-day tasks
      Multifunctional products for day-to-day tasks

      Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

    • person at work

      Powerful, reliable, and economical

      Whether on your desktop or on the floor of your office – be it in color or black and white, with Kyocera, you always achieve the best possible print quality while easily controlling your output costs. Kyocera devices and their components have been designed to be extremely reliable and highly economical.

      Powerful, reliable, and economical
      Powerful, reliable, and economical

      For an MFP that can be trusted to produce the goods whenever required.

    • csr

      ECOSYS: The sustainable solution

      ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs, and significantly less waste during their lifetime.

      ECOSYS: The sustainable solution
      ECOSYS: The sustainable solution

      Unique to Kyocera, ECOSYS provides long-lasting and environmentally friendly MFPs and printers at an economical cost.

    Downloads

    • ECOSYS M8124cidn Drivers
    • ECOSYS M8124cidn Documentation
    • ECOSYS M8124cidn Software

    Main Specifications

    General

    • General
    • Paper Handling
    • Print
    • Copy
    • Scan
    • Fax
    mfp-540x540-angled-ecosysM8124cidn
    General type
    A3 colour MFP (up to 11" x 17")
    Engine speed
    24 ppm b&w / 24 ppm colour
    Warm-up time
    30 sec.
    Power consumption
    Printing/Copying: 560W in b&w and colour, Ready mode: 70W, Low Power mode: 40W, Sleep mode: less than 1.0W
    Input capacity
    Single 500 sheet tray, 100 sheet MPT
    Max. input capacity with options
    1,600 sheets
    Duplex unit
    Standard stackless duplex supports statement (5.5" x 8.5") to ledger (11" x 17"), 16 lb Bond - 32 lb Bond (60 - 120 gsm)
    Max. output capacity
    Standard output tray 250 sheets
    Document processor
    Standard Dual Scan Document Processor: 50 sheets
    Processor
    ARM Cortex-A9 (Dual Core) / 1.2GHz
    Fonts
    93 Fonts PCL 6/KPDL3, 8 Windows Vista, 1 Bitmap
    Applicable OS
    Windows Vista 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012 R2/ Server 2016; Mac OS X v10.5 or later
    Max. original size
    11" x 17"
    Continuous copy
    1-999
    Zoom range
    25 - 400% in 1% Increments
    Preset magnification ratios
    Full Size, 4 Reduction, 4 Enlargement Preset Ratios
    Digital copy features
    Auto Magnification, Auto Paper Select, Auto Start, Auto Drawer Change, Interrupt Copy, Rotate Copy, Border Erase, Split Copy, Electronic Sort, Prevent Bleed Through, Blank Page Skip
    Scan functionalities
    Scan to Folder (SMB), Scan to Email (SMTP and SMTP over SSL), Scan to FTP (FTP over SSL), Scan to USB, WSD Scan, WIA Driver, TWAIN Scan
    Scan speed
    50 ipm simplex / 16 ipm duplex
    Scan resolution
    600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi
    Max. scan size
    11" x 17"
    File type
    TIFF, PDF, High Compression PDF, XPS, Open XPS, JPEG
    Compatibility
    G3 Fax
    Modem speed
    33.6 Kbps
    Transmission speed
    Less than 3 seconds
    Max. original size
    11" x 17"
    Fax features
    Network Fax, Duplex Transmission and Reception, Encrypted Transmission and Reception, Polling Transmission and Reception, Broadcast

    Options and Consumables

    Paper Handling Options

    • Paper Handling Options
    • Consumables
    • Options

    TK-8117C
    Cyan Toner (Yield: 6K @ ISO 19798)

    TK-8117K
    Black Toner (Yield: 12K @ ISO 19798)

    TK-8117M
    Magenta Toner (Yield: 6K @ ISO 19798)

    TK-8117Y
    Yellow Toner (Yield: 6K @ ISO 19798)

    Card Authentication Kit (B)
    Support for various proximity card readers

    Data Security Kit (E)
    Kit for hard drive encryption and overwrite

    Fax System 13
    Fax board

    HD-6
    SSD memory device (32 GB)

    HD-7
    SSD memory device (128 GB)

    IB-50
    Gigabit ethernet board for dual NIC

    IB-51
    Wireless LAN NIC - 328' Range

    SD-144-1GB (DDR3)
    Printer DIMM memory (1 GB)

    SD-144-2GB (DDR3)
    Printer DIMM memory (2 GB)

    SDHC Card-16G
    SD Card memory for storage (16 GB)

    SDHC Card-32G
    SD Card memory for storage (32 GB)

    SH-10
    Staple cartridge

    Stand
    Copier cabinet stand

    UG-33
    Thin Print support

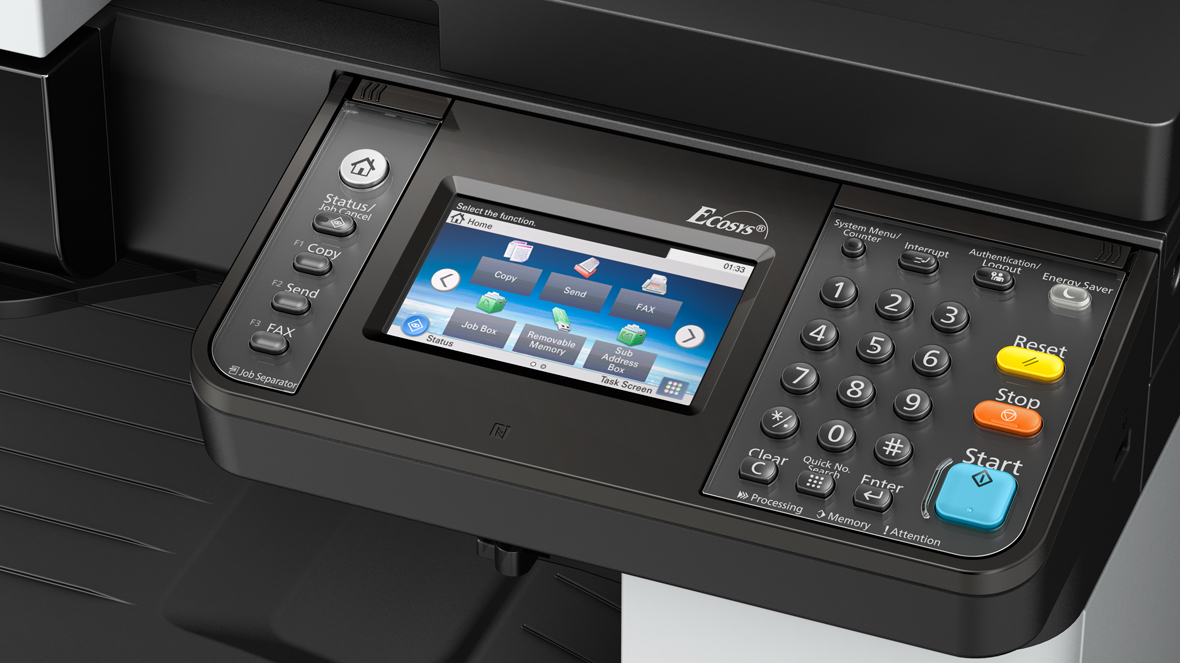

    • imagegallery-1180x663-ECOSYS-M8124cidn-panel

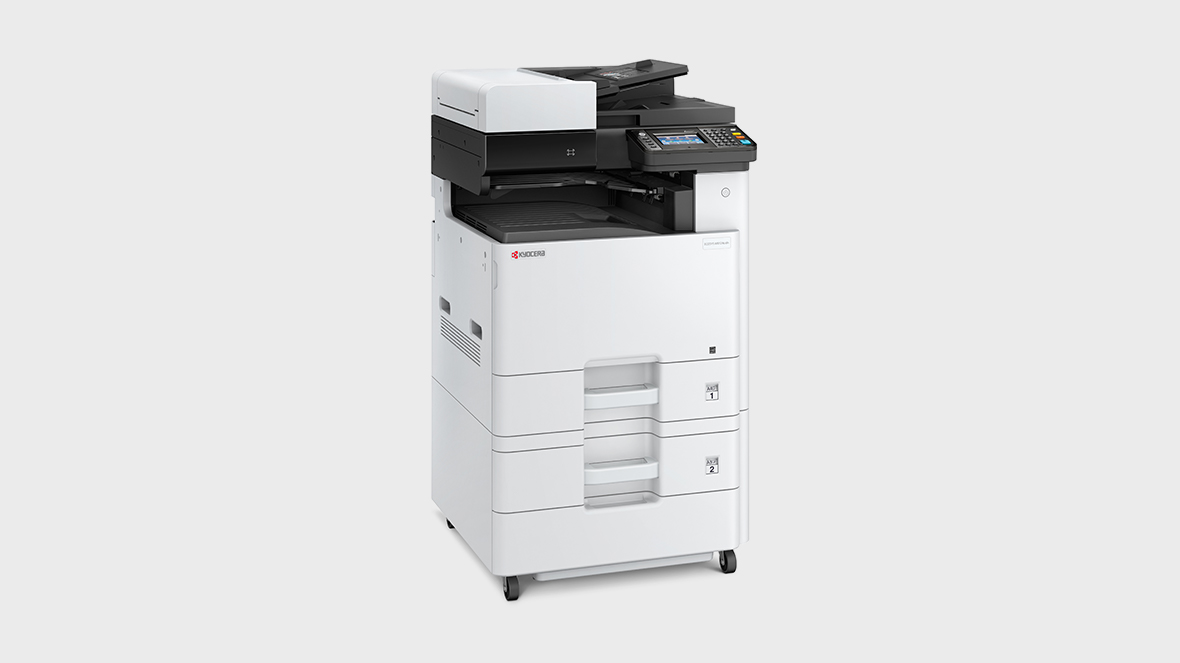

    • imagegallery-1180x663-ECOSYS-M8124cidn-angle

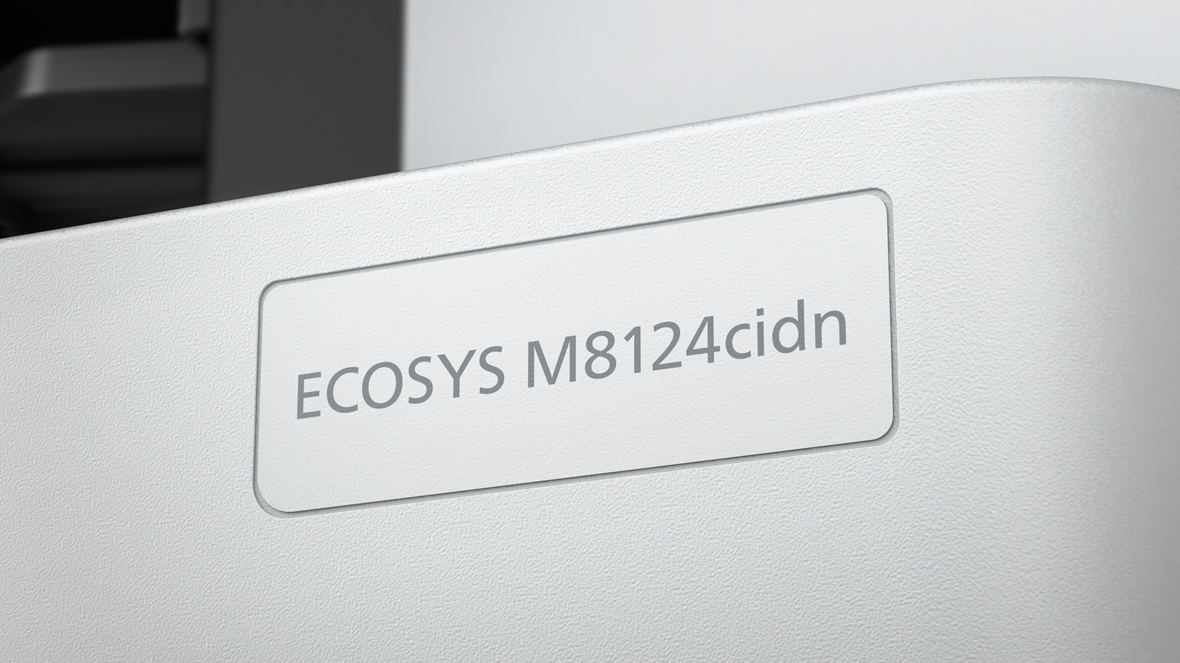

    • imagegallery-1180x663-ECOSYS-M8124cidn-detail

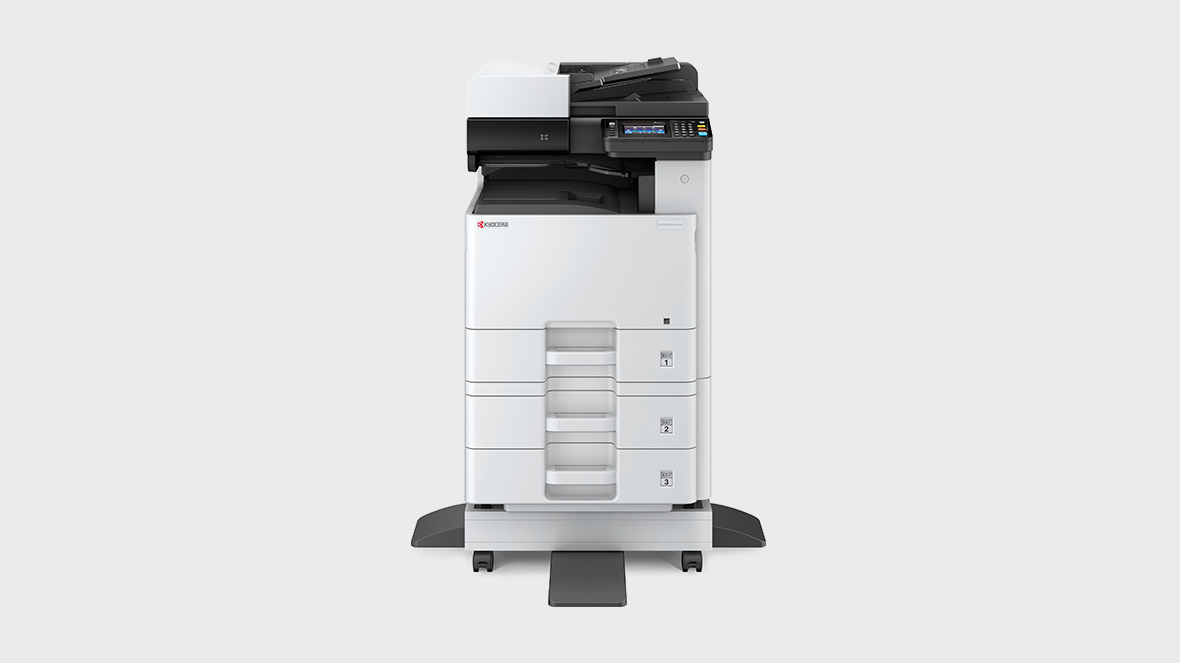

    • imagegallery-1180x663-ECOSYS-M8124cidn-front

    Find the perfect match

    Our Product Configurator helps you find the right set-up for the device you’re interested in. Select available add-ons to suit your specific needs.
