mfp-540x540-angled-ecosysM8130cidn

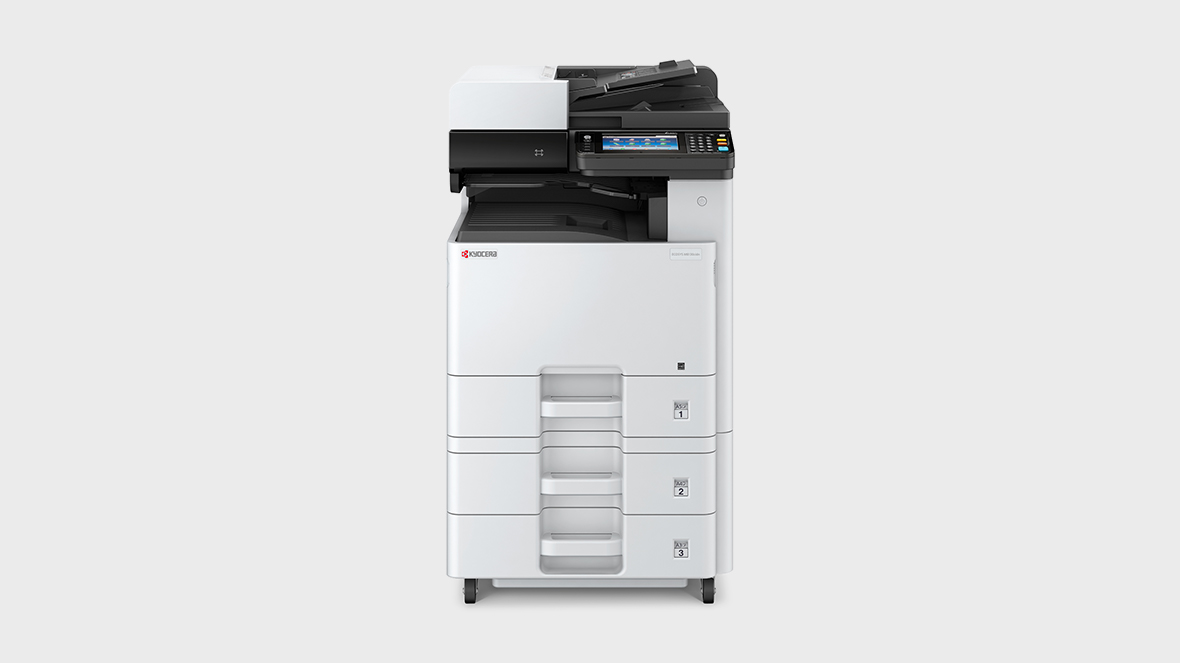

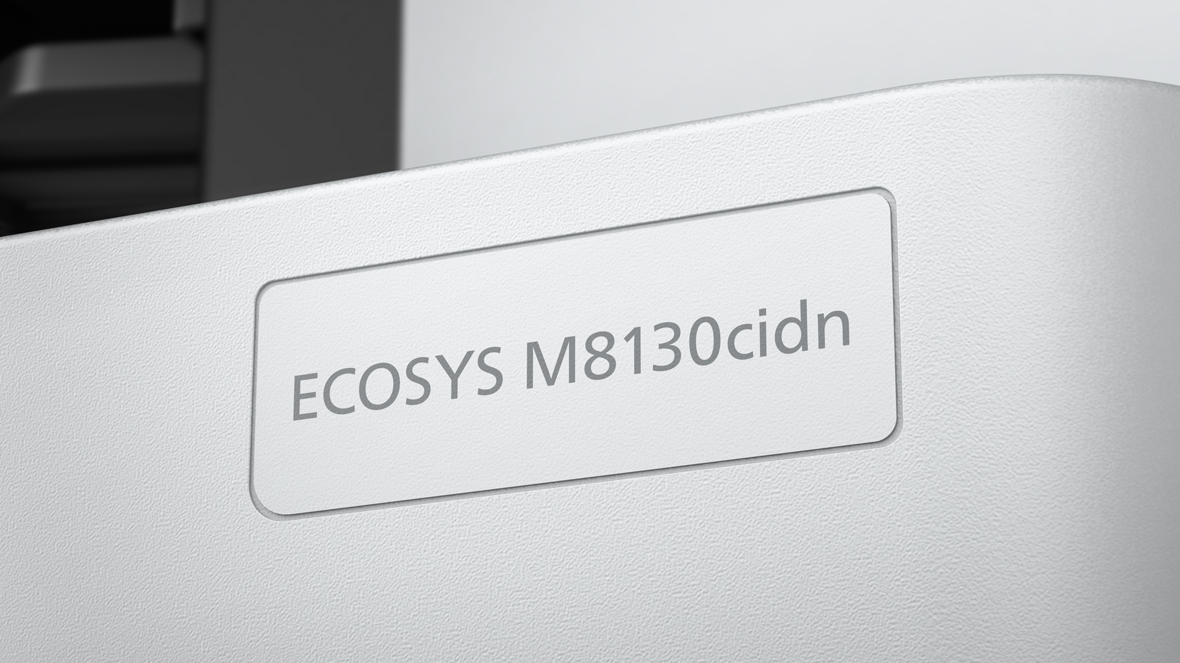

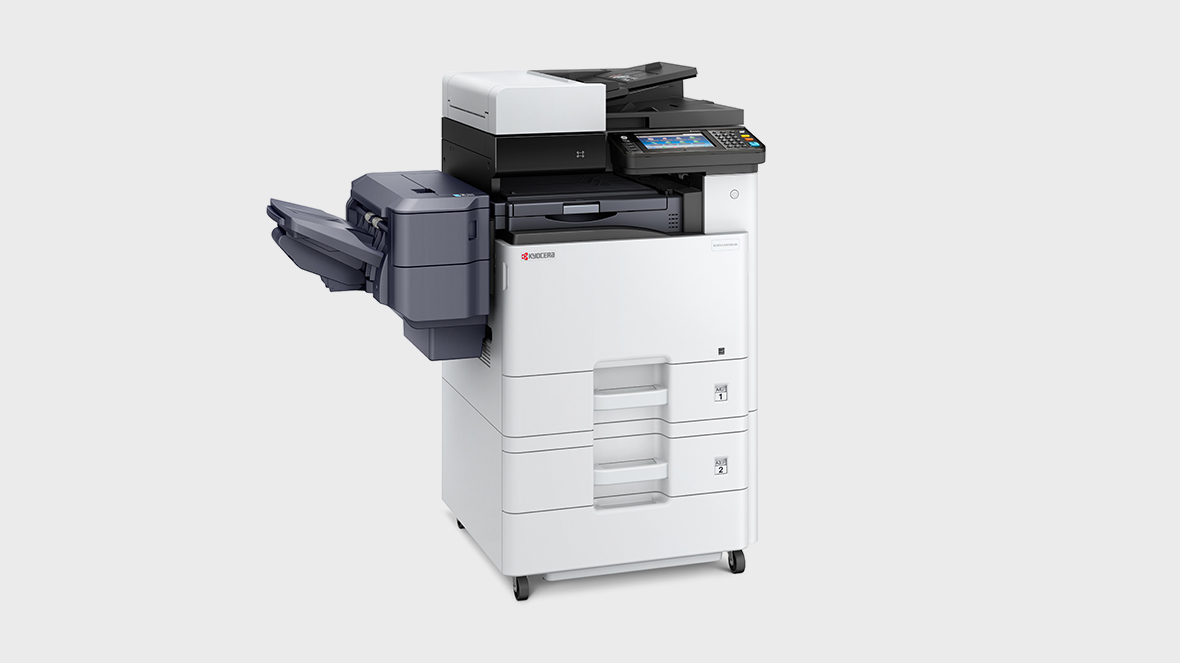

ECOSYS M8130cidn

The ECOSYS M8130cidn combines exceptional business colour and superior functionality with low total cost of ownership.

  • High speeds up to 30 ppm b&w / 30ppm colour

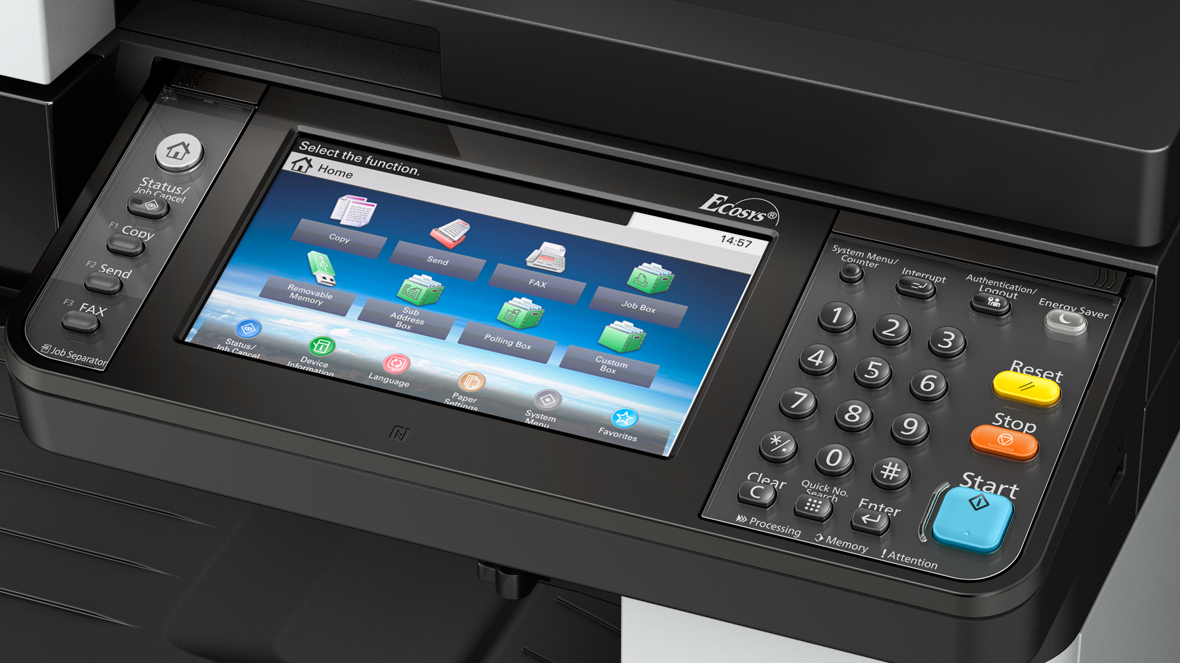

  • 7" colour TSI - intuitive user interface
  • High quality output up to 1200 x 1200 dpi
  • Standard Apple AirPrint, Google Cloud Print, Mopria Print Service and KYOCERA Mobile Print support
  • HyPAS-enabled, and KNM, MyQ, and KFS ready
Engine speed
Engine speed

30 ppm b&w / 30 ppm colour

Resolution
Resolution

Up to 1200 x 1200 dpi

Scan speed
Scan speed

50 ipm simplex / 16 ipm duplex

Time to first print
Time to first print

6.5 sec. b&w / 8.3 sec. colour

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

  • people at work

    Multifunctional products for day-to-day tasks

    Highly regarded by the industry and highly rated by numerous testing organizations, Kyocera boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant color, to match the needs of any business.

    Multifunctional products for day-to-day tasks

    Multifunctional products for day-to-day tasks

    Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

  • person at work

    Powerful, reliable, and economical

    Whether on your desktop or on the floor of your office – be it in color or black and white, with Kyocera, you always achieve the best possible print quality while easily controlling your output costs. Kyocera devices and their components have been designed to be extremely reliable and highly economical.

    Powerful, reliable, and economical

    Powerful, reliable, and economical

    For an MFP that can be trusted to produce the goods whenever required.

  • csr

    ECOSYS: The sustainable solution

    ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs, and significantly less waste during their lifetime.

    ECOSYS: The sustainable solution

    ECOSYS: The sustainable solution

    Unique to Kyocera, ECOSYS provides long-lasting and environmentally friendly MFPs and printers at an economical cost.

Downloads

  • ECOSYS M8130cidn Drivers
  • ECOSYS M8130cidn Documentation
  • ECOSYS M8130cidn Software

Main Specifications

General
  • General
  • Paper Handling
  • Print
  • Copy
  • Scan
  • Fax

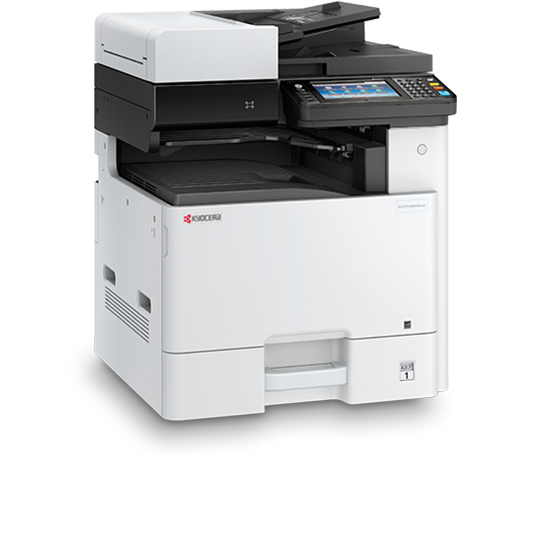

mfp-540x540-angled-ecosysM8130cidn
General type
A3 colour MFP (up to 11" x 17")
Engine speed
30 ppm b&w / 30 ppm colour
Warm-up time
30 sec.
Power consumption
Printing/Copying: 650W in b&w and colour, Ready mode: 70W, Low Power mode: 40W, Sleep mode: less than 1.0W
Input capacity
Single 500 sheet tray, 100 sheet MPT
Max. input capacity with options
1,600 sheets
Duplex unit
Standard stackless duplex supports statement (5.5" x 8.5") to ledger (11" x 17"), 16 lb Bond - 32 lb Bond (60 - 120 gsm)
Max. output capacity
Standard output tray 250 sheets

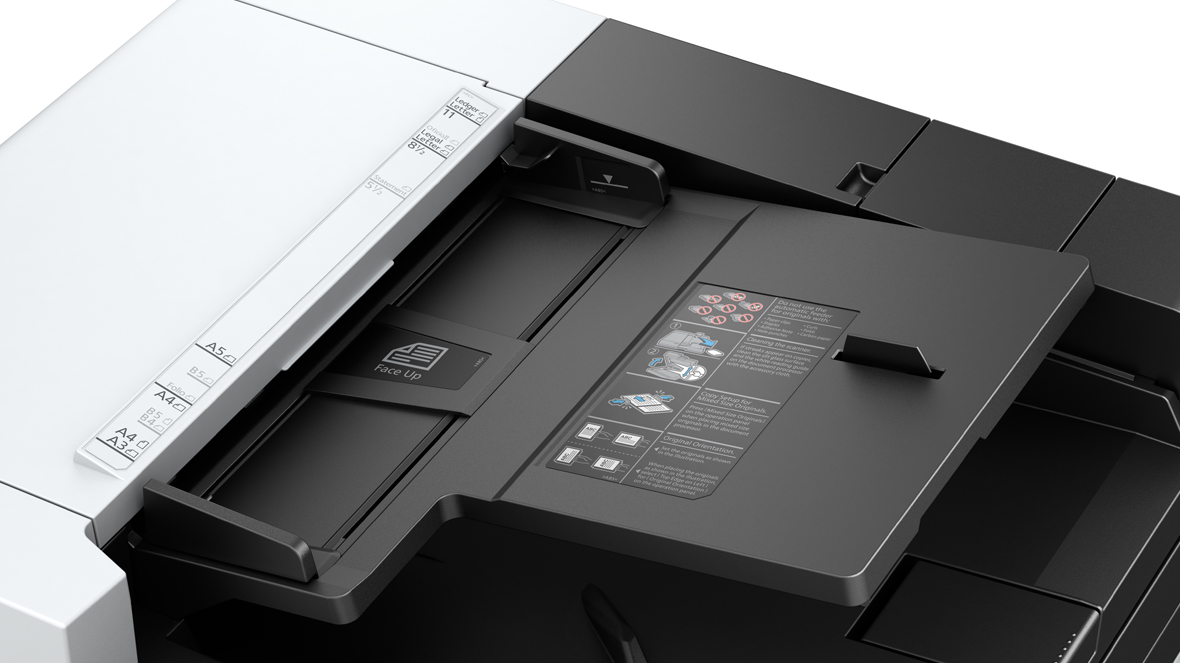

Document processor
Standard Dual Scan Document Processor: 50 sheets
Processor
ARM Cortex-A9 (Dual Core) / 1.2GHz
Fonts
93 Fonts PCL 6/KPDL3, 8 Windows Vista, 1 Bitmap
Applicable OS
Windows Vista 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012 R2/ Server 2016; Mac OS X v10.5 or later
Max. original size
11" x 17"
Continuous copy
1-999
Zoom range
25 - 400% in 1% Increments
Preset magnification ratios
Full Size, 4 Reduction, 4 Enlargement Preset Ratios
Digital copy features
Auto Magnification, Auto Paper Select, Auto Start, Auto Drawer Change, Interrupt Copy, Rotate Copy, Border Erase, Split Copy, Electronic Sort, Prevent Bleed Through, Blank Page Skip
Scan functionalities
Scan to Folder (SMB), Scan to Email (SMTP and SMTP over SSL), Scan to FTP (FTP over SSL), Scan to USB, WSD Scan, WIA Driver, TWAIN Scan
Scan speed
50 ipm simplex / 16 ipm duplex
Scan resolution
600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 400 dpi, 200 x 200 dpi, 200 x 100 dpi
Max. scan size
11" x 17"
File type
TIFF, PDF, High Compression PDF, XPS, Open XPS, JPEG
Compatibility
G3 Fax
Modem speed
33.6 Kbps
Transmission speed
Less than 3 seconds
Max. original size
11" x 17"
Fax features
Network Fax, Duplex Transmission and Reception, Encrypted Transmission and Reception, Polling Transmission and Reception, Broadcast

Options and Consumables

Paper Handling Options
  • Paper Handling Options
  • Consumables
  • Options

TK-8117C
Cyan Toner (Yield: 6K @ ISO 19798)

TK-8117K
Black Toner (Yield: 12K @ ISO 19798)

TK-8117M
Magenta Toner (Yield: 6K @ ISO 19798)

TK-8117Y
Yellow Toner (Yield: 6K @ ISO 19798)

Card Authentication Kit (B)
Support for various proximity card readers

Data Security Kit (E)
Kit for hard drive encryption and overwrite

Fax System 13
Fax board

HD-6
SSD memory device (32 GB)

HD-7
SSD memory device (128 GB)

IB-50
Gigabit ethernet board for dual NIC

IB-51
Wireless LAN NIC - 328' Range

SD-144-1GB (DDR3)
Printer DIMM memory (1 GB)

SD-144-2GB (DDR3)
Printer DIMM memory (2 GB)

SDHC Card-16G
SD Card memory for storage (16 GB)

SDHC Card-32G
SD Card memory for storage (32 GB)

SH-10
Staple cartridge

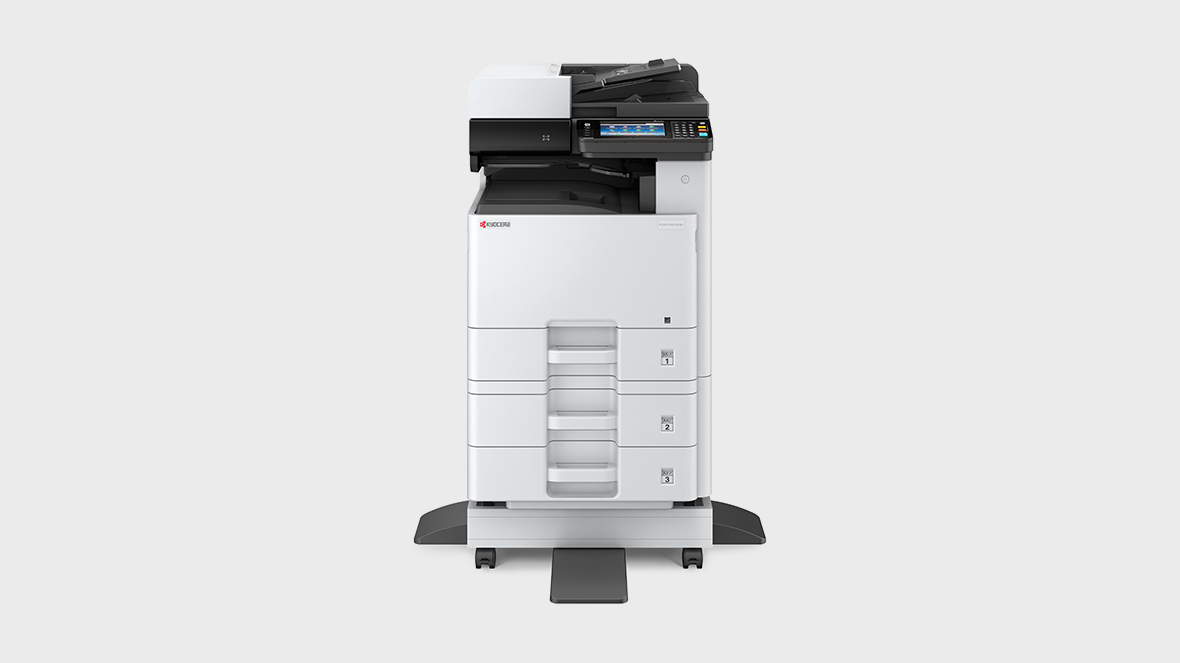

Stand
Copier cabinet stand

UG-33
Thin Print support

Find the perfect match

The Kyocera Configurator helps you find the right set-up for the device you’re interested in. Select available add-ons to suit your specific needs.
