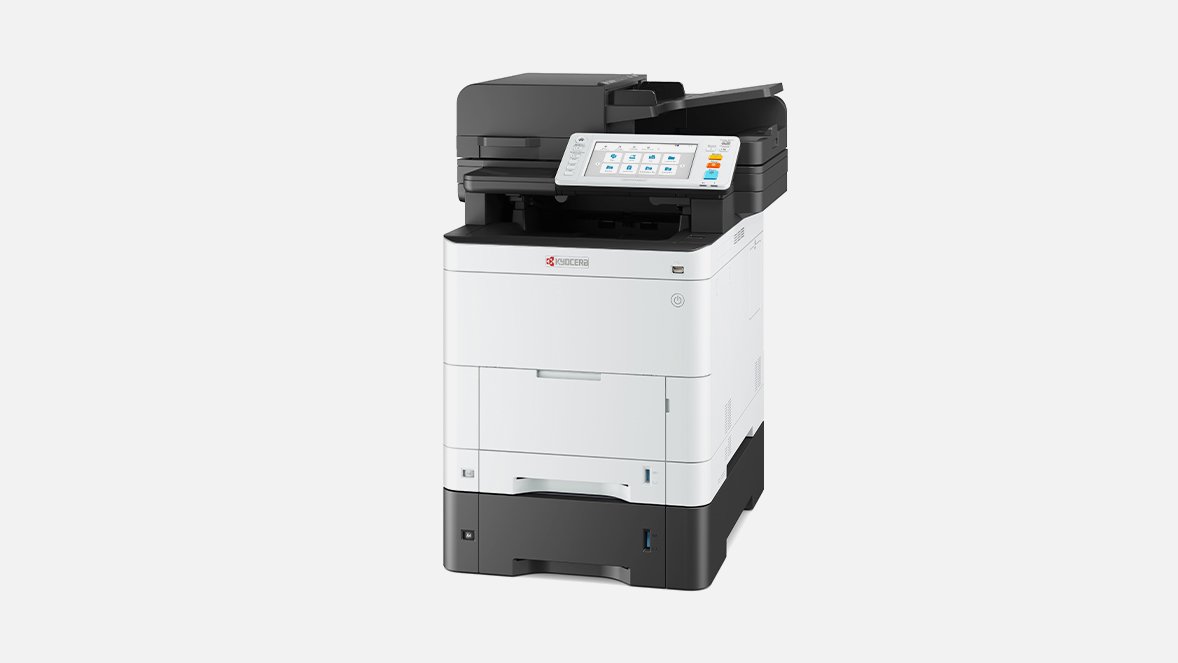

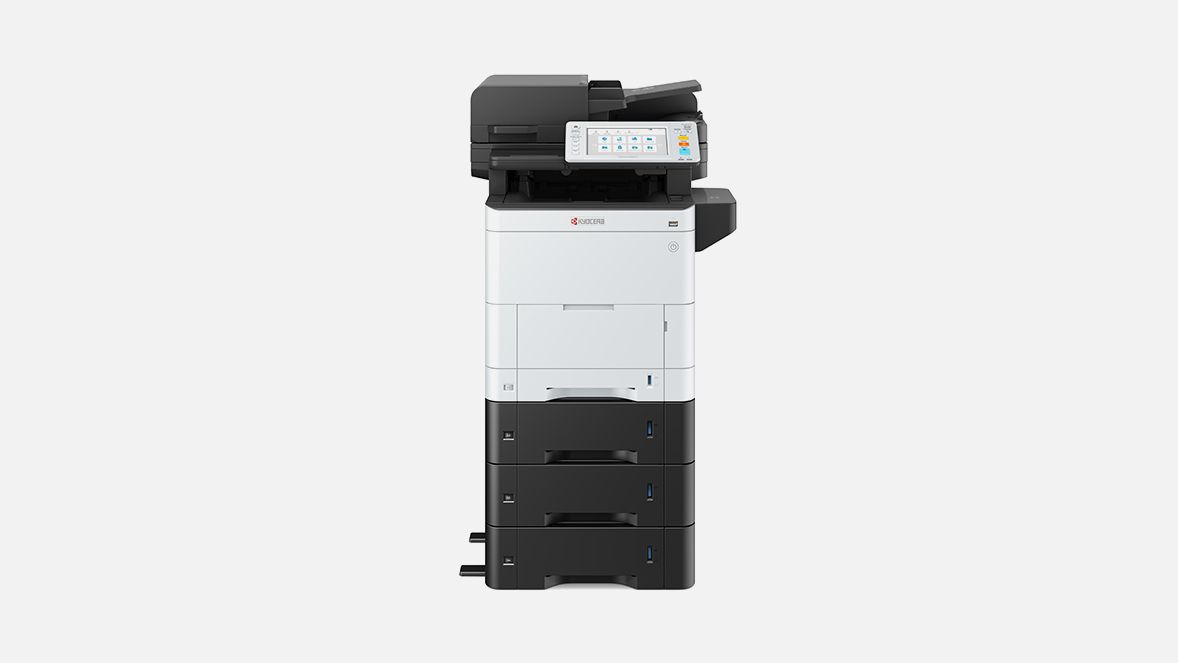

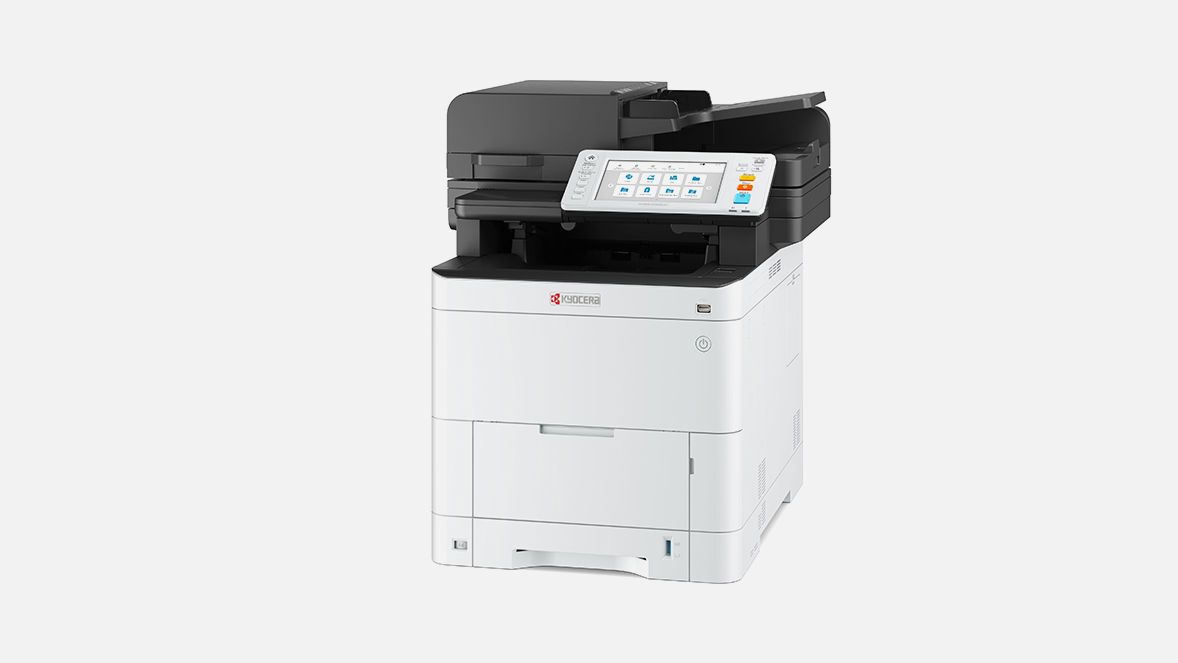

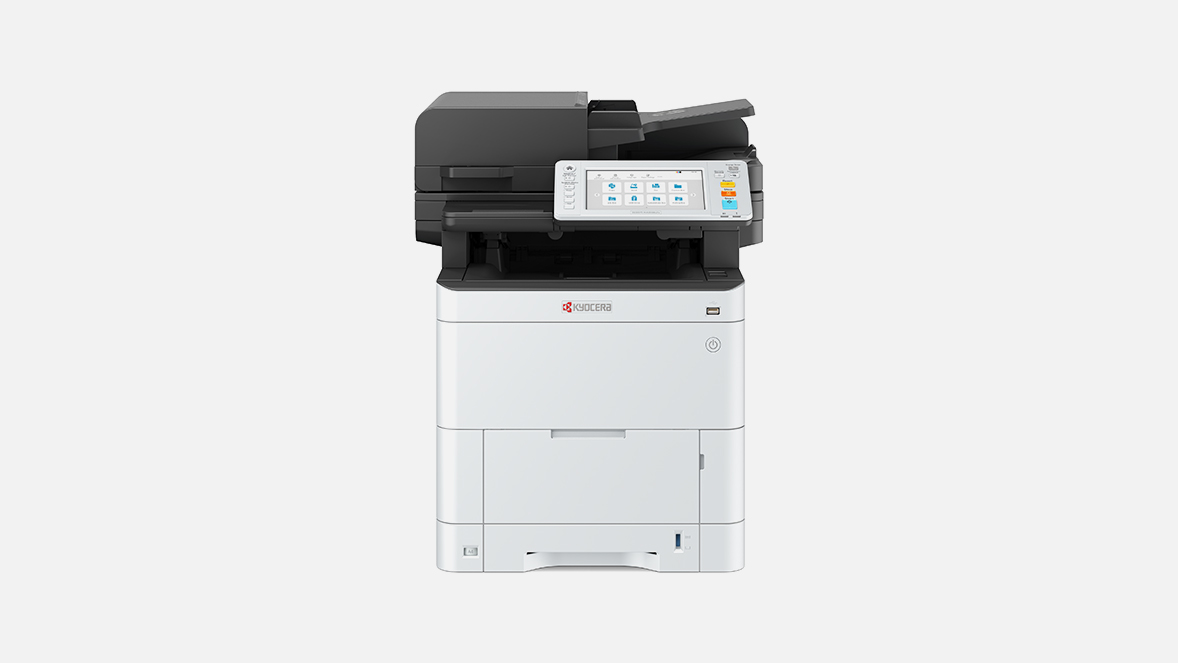

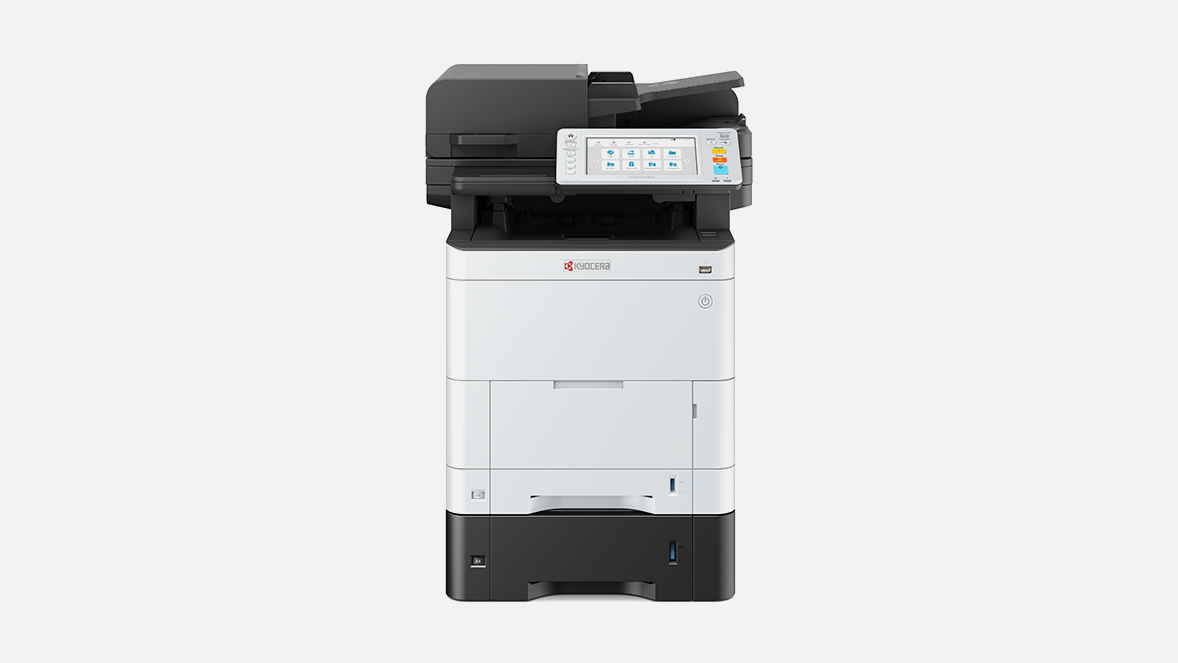

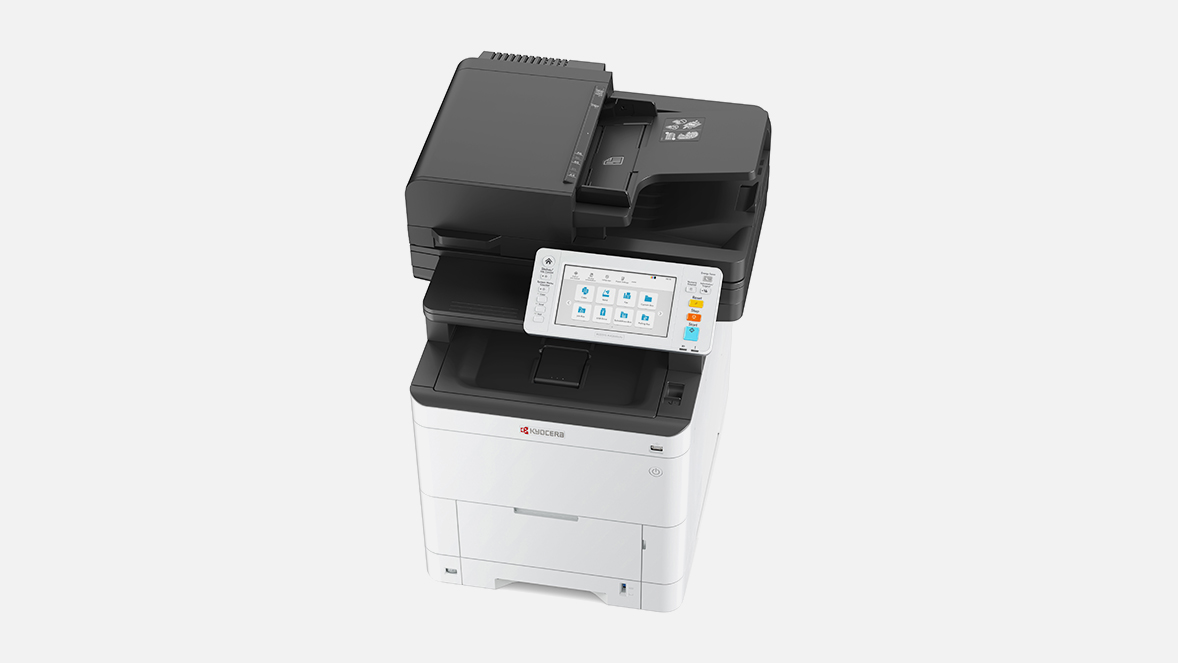

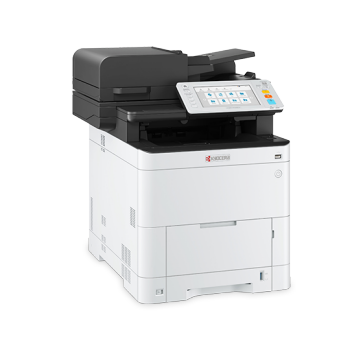

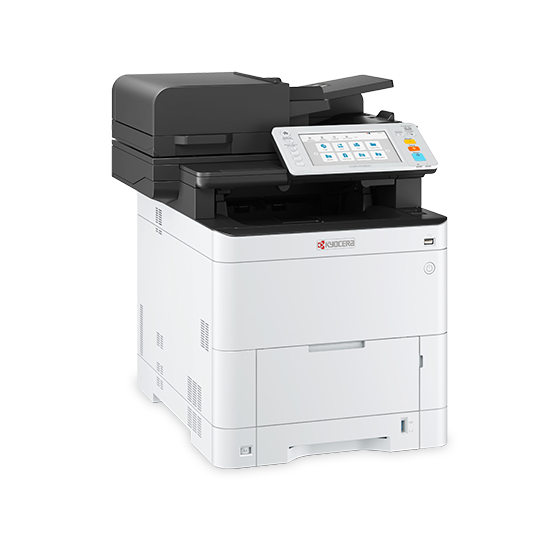

ECOSYS MA3500cifx

The ECOSYS MA3500cifx is a versatile 37 page per minute Color MFP designed for small to mid-sized workgroups that require maximum productivity, reliability, and enhanced security capabilities.

High speeds up to 37 ppm b&w and color
7" color TSI - intuitive user interface
Versatile 100-sheet Dual Scan Document Processor
High quality output at 1200 x 1200 dpi
HyPAS-enabled, and KCPS, KNM and KFS ready
Optional Wireless, Wi-Fi Direct

Engine speed

37 ppm color

Resolution

1200 dpi x 1200 dpi, 9600 dpi x 600 dpi, 600 dpi x 600 dpi

Scan speed

Simplex BW/Color: @300 dpi - 60ipm/40ipm; @600 dpi - 40ipm/20ipm Duplex (DSDP) BW/Color: @300 dpi: 100ipm/80ipm: @600 dpi 60ipm/32ipm

Time to first print

5.7 sec. b&w; 7.0 sec. color

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

Multifunctional products for day-to-day tasks

Highly regarded by the industry and highly rated by numerous testing organizations, Kyocera boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant color, to match the needs of any business.

Multifunctional products for day-to-day tasks

Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.
Powerful, reliable, and economical

Whether on your desktop or on the floor of your office – be it in color or black and white, with Kyocera, you always achieve the best possible print quality while easily controlling your output costs. Kyocera devices and their components have been designed to be extremely reliable and highly economical.

Powerful, reliable, and economical

For an MFP that can be trusted to produce the goods whenever required.
ECOSYS: The sustainable solution

ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs, and significantly less waste during their lifetime.

ECOSYS: The sustainable solution

Unique to Kyocera, ECOSYS provides long-lasting and environmentally friendly MFPs and printers at an economical cost.

Downloads

ECOSYS MA3500cifx Drivers
ECOSYS MA3500cifx Documentation
ECOSYS MA3500cifx Software

Main Specifications

General

General
Paper handling
Print
Copy
Scan
Fax

General type

A4 MFP (up to 8.5" x 14")

Engine speed

37 ppm color

Warm-up time

26 sec. or less

Power consumption

Copying/Printing: 120V: 544.9W/538.9W; 220 - 240V: 479.1W/449.1W; Ready: 120V: 18.4W; 220V: 220 - 240V; Sleep: 120V: 0.5W; 220 - 240V: 0.6W

Input capacity

Single 250 sheet tray, 100 sheet MPT

Max. input capacity with options

2,000 sheets

Duplex unit

Standard Stackless, Supports Statement to Legal (5.5" x 8.5" - 8.5" x 14"), 16 lb Bond - 90 lb Index (60 - 163gsm)

Max. output capacity

Standard Output Tray 250 Sheets Face Down

Document processor

Standard Dual Scan Document Processor: 100 sheets

Processor

ARM Cortex-A9 Dual core 1.2GHz + ARM Cortex-M3 100MHz

Fonts

PCL, KPDL, Cambria, Calibri and Bitmap

Applicable OS

Windows Server 2012,Windows Server 2012R, Windows 8.1, Windows 10; Linux; Mac OS X 10.5 or later; Google Crome OS version 118 or higher

Max. original size

8.5" x 14"

Continuous copy

1-999

Zoom range

25 - 400% in 1% Step Increments

Preset magnification ratios

Full Size, 7 Reduction, 5 Enlargement Preset Ratios

Digital copy features

Auto Paper Select (APS), Color Balance, Auto Color Select (ACS), Background Density Adjustment, Auto Zoom, Auto Duplex, Continuous Scan, Blank Page Skip, ID Card Copy, Quiet Mode

Scan functionalities

PC (SMB), email (SMTP), USB, FTP, WSD, TWAIN/WIA

Scan speed

Simplex BW/Color: @300 dpi - 60ipm/40ipm; @600 dpi - 40ipm/20ipm Duplex (DSDP) BW/Color: @300 dpi: 100ipm/80ipm: @600 dpi 60ipm/32ipm

Scan features

Continuous Scan, Mixed Originals, Blank Page Skip, ID Card Copy, DP Auto Crop

Scan resolution

300 dpi x 300 dpi, 200 dpi x 200 dpi (Default), 200 dpi x 100 dpi, 600 dpi x 600 dpi, 400 dpi x 400 dpi, 200 dpi x 400 dpi

Max. scan size

8.5" x 14"

File type

TIFF (MMR/JPEG compression), JPEG, PDF (MMR/JPEG compression), XPS, PDF/A-1,PDF/A-2, PDF (High compression), Encrypted PDF, OPEN XPS

Compatibility

G3 Fax

Modem speed

33.6 Kbps

Max. original size

8.5" x 14"

Fax features

Fowarding, Polling TX/RX, Multiport Destination, Network Fax TX, Duplex Transmission/Reception, Density Adjustment, Original Image Quality, Original Type 1-Sided/2-Sided, Send Size, Continous Scan, Direct Transmission, Polling Recption, Quiet Mode, Mixed Originals (Same Width), Banner
