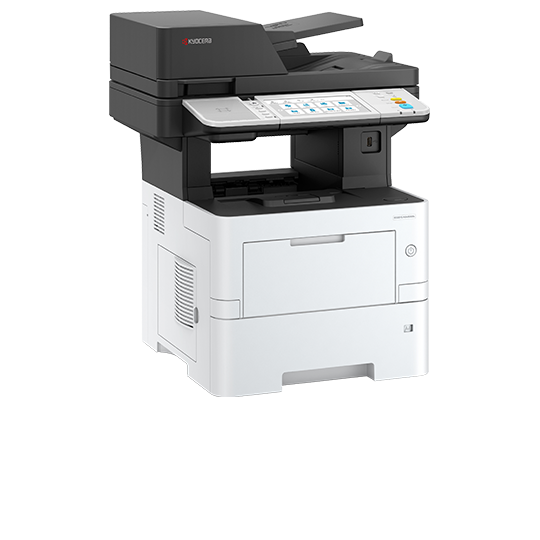

ECOSYS MA4500ifx

Compact yet powerful, at 47 pages per minute the MA4500ifx speeds through even the toughest jobs with ease providing outstanding image quality to get the job done right.

  • Supports standard Print, Copy, Scan and Fax
  • Standard 75-sheet Reverse Automatic Document Processor
  • High resolution printing up to Fine 1200 dpi
  • Supports the latest enhanced security capabilities
Engine speed

47 ppm b&w


600 x 600 dpi, Up To Fine 1200 dpi

Scan speed

Simplex BW/Color: @200dpi and @300 dpi: 62ipm/42ipm; @600 dpi: 42ipm/22ipm; Duplex (RADP) BW/Color: @200dpi and @300 dpi: 27ipm/18ipm; @600 dpi: 18ipm/9ipm

Time to first print

5.3 sec. b&w

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

  • Multifunctional products for day-to-day tasks

    Multifunctional products for day-to-day tasks

    Highly regarded by the industry and highly rated by numerous testing organizations, Kyocera boasts a complete portfolio of reliable, high-value and eco-friendly network devices which guarantee the delivering of a high-resolution output, whether in crisp black and white or vibrant color, to match the needs of any business.

    Multifunctional products for day-to-day tasks
    Multifunctional products for day-to-day tasks

    Kyocera provides the industry’s most comprehensive line of award-winning low to high volume devices.

  • Powerful, reliable, and economical

    Powerful, reliable, and economical

    Whether on your desktop or on the floor of your office – be it in color or black and white, with Kyocera, you always achieve the best possible print quality while easily controlling your output costs. Kyocera devices and their components have been designed to be extremely reliable and highly economical.

    Powerful, reliable, and economical
    Powerful, reliable, and economical

    For an MFP that can be trusted to produce the goods whenever required.

  • ECOSYS: The sustainable solution

    ECOSYS: The sustainable solution

    ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs, and significantly less waste during their lifetime.

    ECOSYS: The sustainable solution
    ECOSYS: The sustainable solution

    Unique to Kyocera, ECOSYS provides long-lasting and environmentally friendly MFPs and printers at an economical cost.


  • ECOSYS MA4500ifx Drivers
  • ECOSYS MA4500ifx Documentation
  • ECOSYS MA4500ifx Software

Main Specifications


  • General
  • Paper handling
  • Print
  • Copy
  • Scan
  • Fax
General type
A4 MFP (up to 8.5" x 14")
Engine speed
47 ppm b&w
Warm-up time
23 sec. or less
Power consumption
Printing: 120V: 622.6W; 220 – 240V: 626.3W; Ready: 55W, Sleep: 0.5W
Input capacity
Single 500 sheet tray, 100 sheet MPT
Max. input capacity with options
2,600 sheets
Duplex unit
Standard stackless duplex supports statement (5.5" x 8.5") to legal (8.5" x 14"), 16 lb Bond - 90 lb Index (60 - 120gsm)
Max. output capacity
Standard output tray 250 Sheets Face Down
Document processor
Standard Reverse Automatic Document Processor: 75 sheets
ARM Cortex-A53 Dual core 1.4GHz
Outline Fonts 93 (PCL 6/KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), Bitmap (1 Font / 79 Processed Outline Fonts)
Applicable OS
Windows Server 2012,Windows Server 2012R, Windows 8.1, Windows 10; Linux; Mac OS X 10.5 or later
Max. original size
8.5" x 14"
Continuous copy
Zoom range
25 - 400% in 1% Step Increments
Preset magnification ratios
Full Size, 7 Reduction, 5 Enlargement Preset Ratios
Digital copy features
Auto Duplex, Continuous Scan, Blank Page Skip, Line Skip Copy, ID Card Copy
Scan functionalities
Banner Scan, Scan Resolution, Line Skip, File Separation, Blank Page Skip Scan, WSD Scan (WIA Driver), PC Send (SMB Version 3.0), E-mail Send (SMTP), FTP Send (FTP, FTP over SSL), USB Send (USB), TWAIN Scan (KM-WSDL Scan Operation Service – TWAIN Driver), WIA Scan (KM-WSDL Scan Operation Service – WIA Driver), WSD Scan (WIA Driver), ChromeOS(Scan) (eSCL), AirPrint (eSCL), Mopria (eSCL)
Scan speed
Simplex BW/Color: @200dpi and @300 dpi: 62ipm/42ipm; @600 dpi: 42ipm/22ipm; Duplex (RADP) BW/Color: @200dpi and @300 dpi: 27ipm/18ipm; @600 dpi: 18ipm/9ipm
Scan resolution
600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi, 200 x 400 dpi, 200 x 100 dpi
Max. scan size
8.5" x 14"
G3 Fax
Modem speed
33.6 Kbps
Max. original size
8.5" x 14"
Fax features
Fax Direct Tx, Fax Memory Tx, Scheduled Transmission, Fax Polling Tx/Rx,Subaddress Tx, Subaddress Confidential Rx, Subaddress bulletin board Rx, Forward Fax, Network Fax Tx, Shared Fax Driver

Options and Consumables

Paper Handling Options

  • Paper Handling Options
  • Consumables
  • Options

Black Toner (Yield: 12.5K @ ISO 19752)

Printer DIMM Memory Bulk (1GB)

Copier cabinet stand

Find the perfect match

Our Product Configurator helps you find the right set-up for the device you’re interested in. Select available add-ons to suit your specific needs.
