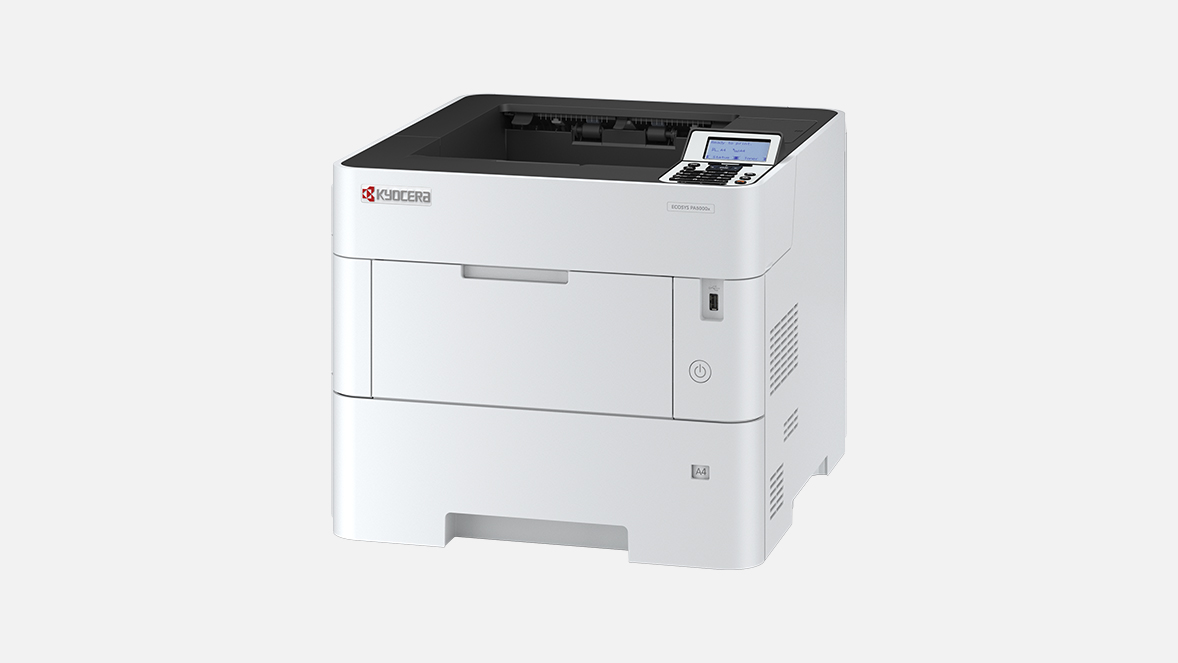

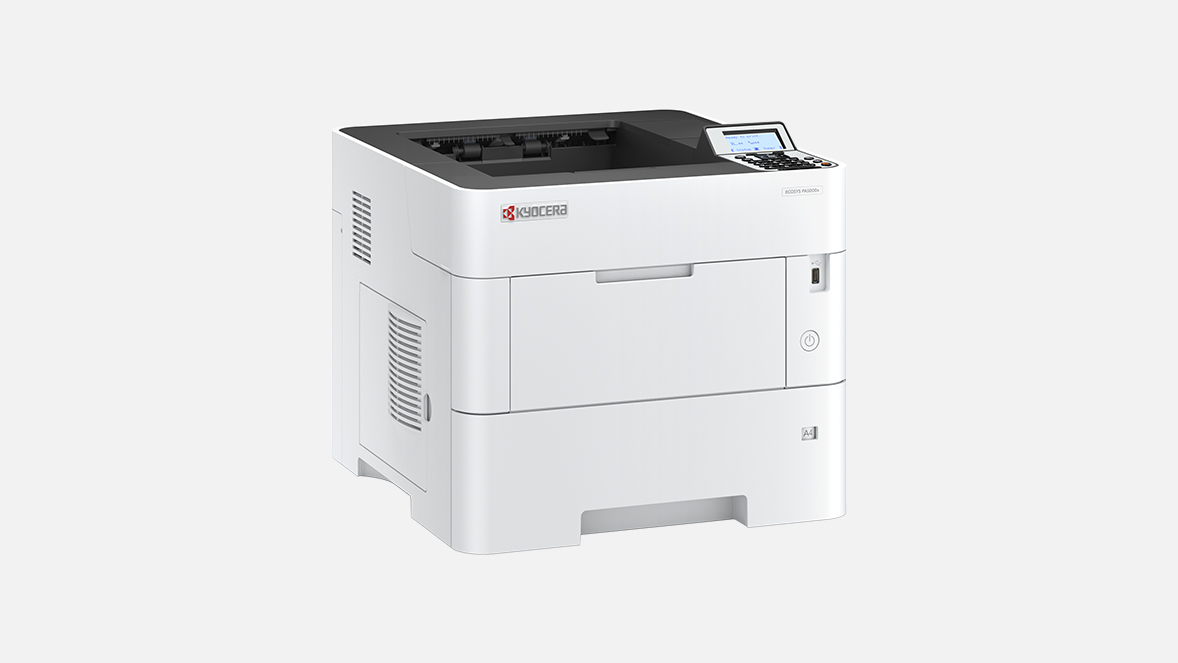

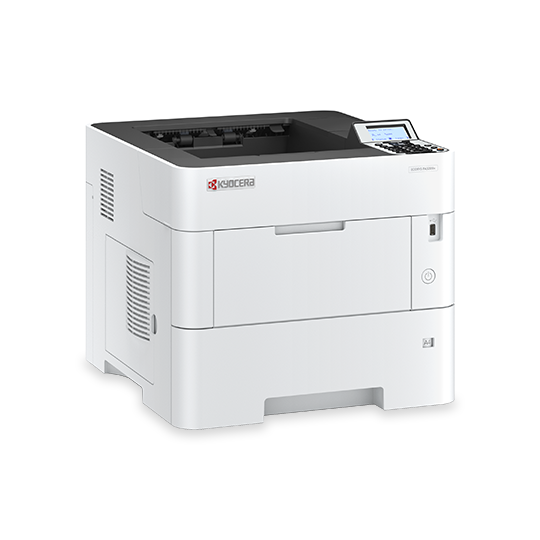

ECOSYS PA5000x

Power through your tasks with a high-performance monochrome printer at speeds of 52 pages per minute. Integrated with Kyocera’s highest level of security firmware, your sensitive data is under lock and key regardless of where and how you work.

  • Handles up to 2,600 Sheets
  • Time to first print of 5.4 seconds
  • Durable machine built with long-life components
  • Mobile printing compatibilities
  • High resolution printing (1200 x 1200 dpi)
Engine speed

52 ppm b&w

Resolution

600 x 600 dpi, Up To Fine 1200 dpi

Dimensions (W x D x H)

15.4" x 16.4" x 13.5"

Time to first print

5.4 sec. b&w

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

  • Printing solutions to make a business run smoothly

    Printing solutions to make a business run smoothly

    Highly regarded by the industry and highly rated by numerous testing organizations, Kyocera’s complete portfolio of reliable, high-value, eco-friendly network laser printers, deliver high resolution output with crisp black and white or vibrant color prints, whether they are text or graphics, for any size workgroup.

    Printing solutions to make a business run smoothly
    Printing solutions to make a business run smoothly

    With the introduction of a Kyocera printer, printing can become reliable, quick, and low cost.

  • Powerful, reliable, and economical

    Powerful, reliable, and economical

    Whether on your desktop or on the floor of your office – be it in color or black and white, with Kyocera, you always achieve the best possible print quality while easily controlling your output costs. Kyocera devices and their components have been designed to be extremely reliable and highly economical.

    Powerful, reliable, and economical
    Powerful, reliable, and economical

    For a printer that can be trusted to produce the goods whenever required.

  • ECOSYS: The sustainable solution

    ECOSYS: The sustainable solution

    ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs, and significantly less waste during their lifetime.

    ECOSYS: The sustainable solution
    ECOSYS: The sustainable solution

    Unique to Kyocera, ECOSYS provides long-lasting and environmentally friendly MFPs and printers at an economical cost.

Downloads

  • ECOSYS PA5000x Drivers
  • ECOSYS PA5000x Documentation
  • ECOSYS PA5000x Software

Main Specifications

General

  • General
  • Paper Handling
  • Print
square-540x540-ECOSYS-PA-5000X
General type
A4 Printer (up to 8.5" x 14")
Engine speed
52 ppm b&w
Warm-up time
20 sec. or less
Power consumption
Printing/Copying: 120V: 345 W; 220-240V: 345 W; Ready: 41W, Sleep: 1W
Input capacity
Single 500 sheet tray, 100 sheet MPT

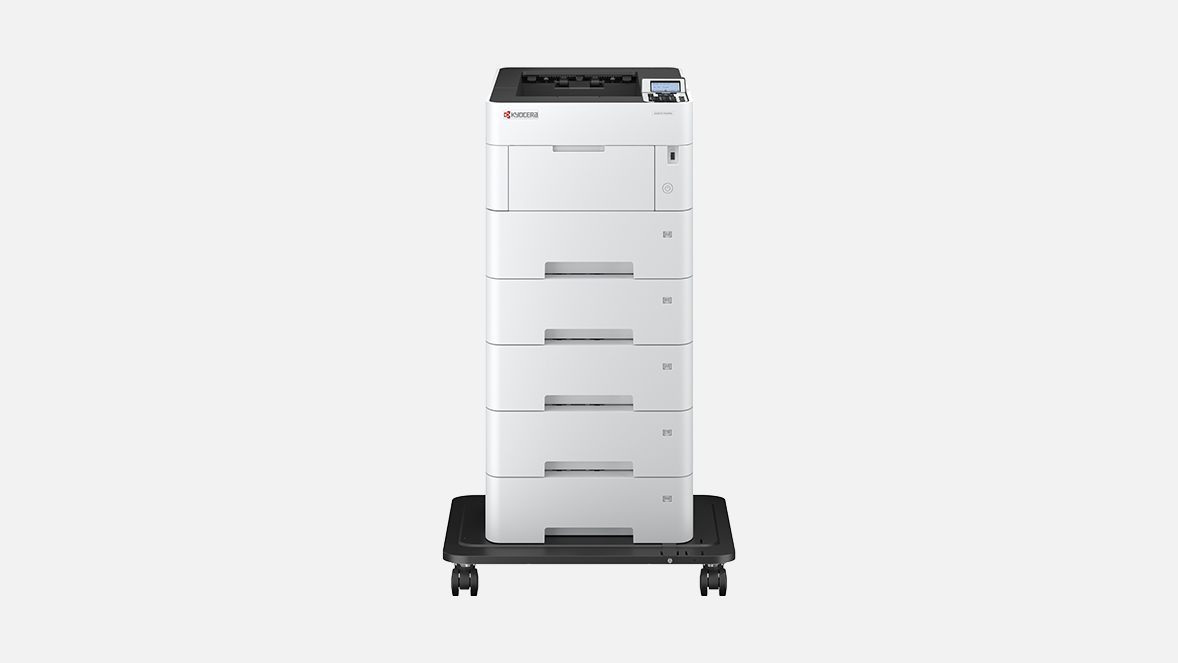

Max. input capacity with options
2,600 sheets
Duplex unit
Standard stackless duplex supports statement (5.5" x 8.5") to legal (8.5" x 14"), 16 lb Bond - 90 lb Index (60 - 120gsm)
Max. output capacity
Standard output tray 500 Sheets; 250 Sheets, Face Down; 250 Sheets, Face Up
Processor
ARM Cortex-A53 Dual core 1.4GHz
Fonts
Outline Fonts 93 (PCL 6/KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), Bitmap (1 Font / 79 Processed Outline Fonts)
Applicable OS
Windows Server 2012, Windows Server 2012 R2, Windows 8.1, Windows 10; Linux, Apple Macintosh OS X 10.5 or Later

Options and Consumables

Paper Handling Options

  • Paper Handling Options
  • Consumables
  • Options

TK-3412
Black Toner (Yield: 15.5K @ ISO 19752)

CA-3100
Caster kit

Card Authentication Kit (B)
Support for various proximity card readers

Data Security Kit (E)
Kit for hard drive encryption and overwrite

HD-6
SSD memory device (32 GB)

HD-7
SSD memory device (128 GB)

IB-32B
IEEE 1284 compliant NIC

IB-36
Wireless LAN NIC - 98' range and Wi-Fi Direct support

IB-36
Wireless LAN NIC - 98' range and Wi-Fi Direct support

IB-50
Gigabit ethernet board for dual NIC

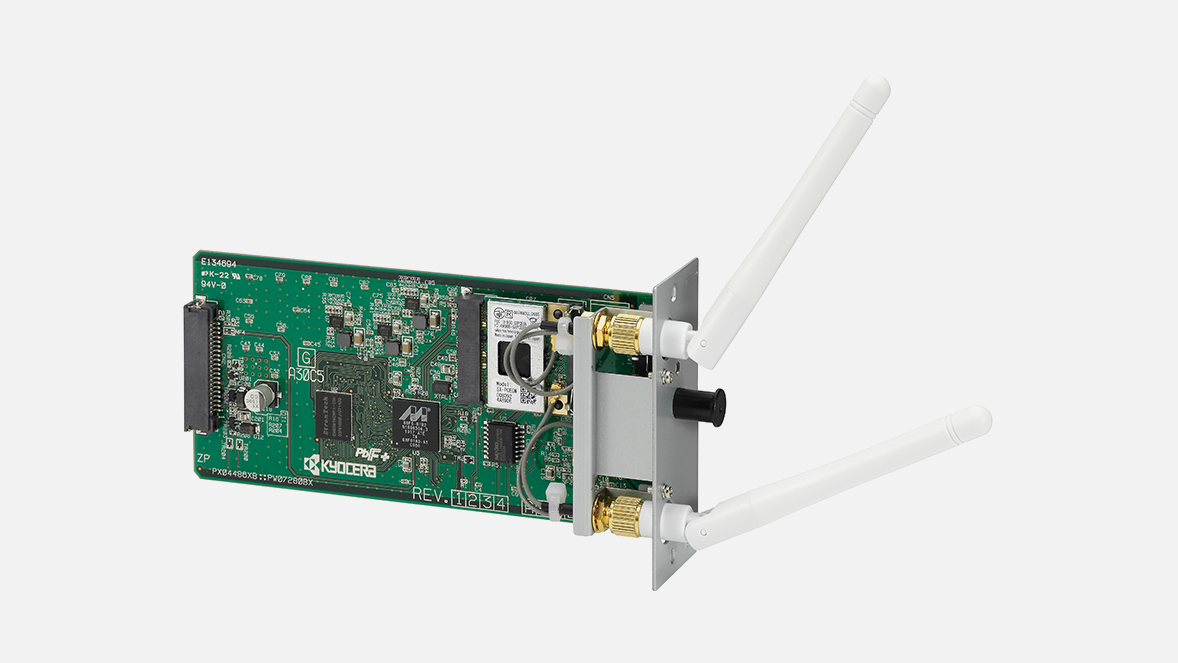

IB-51
Wireless LAN NIC - 328' Range

PB-325
Base unit

PCL Barcode Flash 3.0
PCL Barcode Flash Type D/E

PT-320
250 sheet face-up rear output tray

SD-144-1GB (DDR3)
Printer DIMM memory (1 GB)

SD-144-1GB (DDR3)
Printer DIMM memory (1 GB)

SD-144-2GB (DDR3)
Printer DIMM memory (2 GB)

SD-144-2GB (DDR3)
Printer DIMM memory (2 GB)

Stand
Copier cabinet stand

UG-33
Thin Print support

Find the perfect match

Our Product Configurator helps you find the right set-up for the device you’re interested in. Select available add-ons to suit your specific needs.
