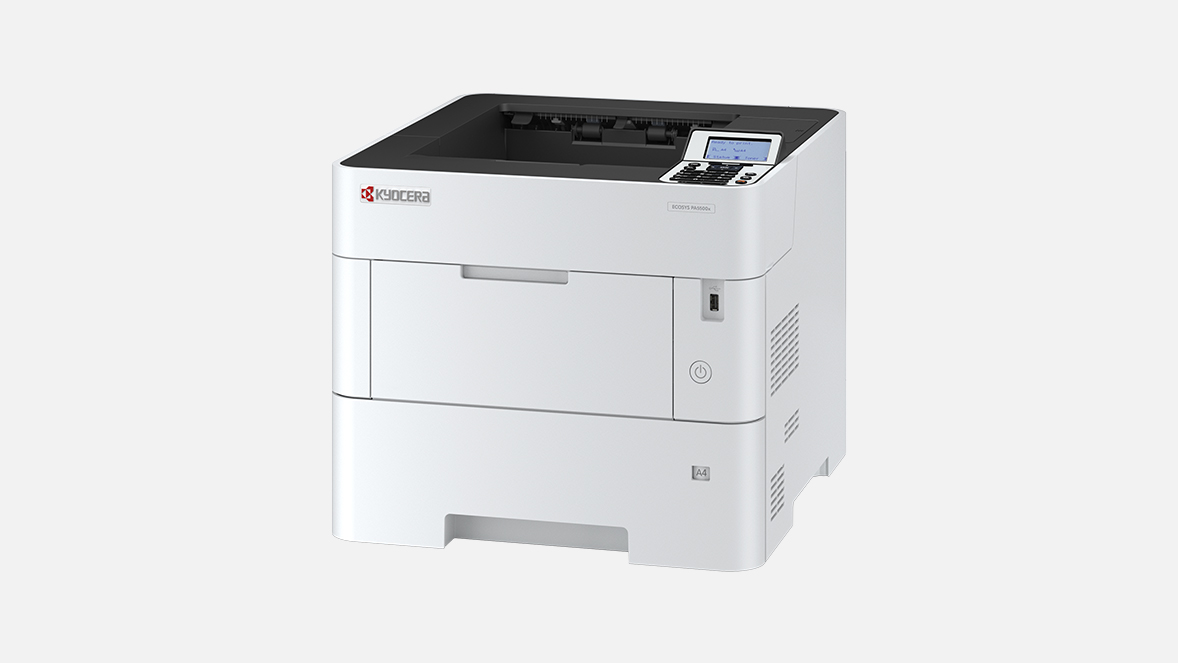

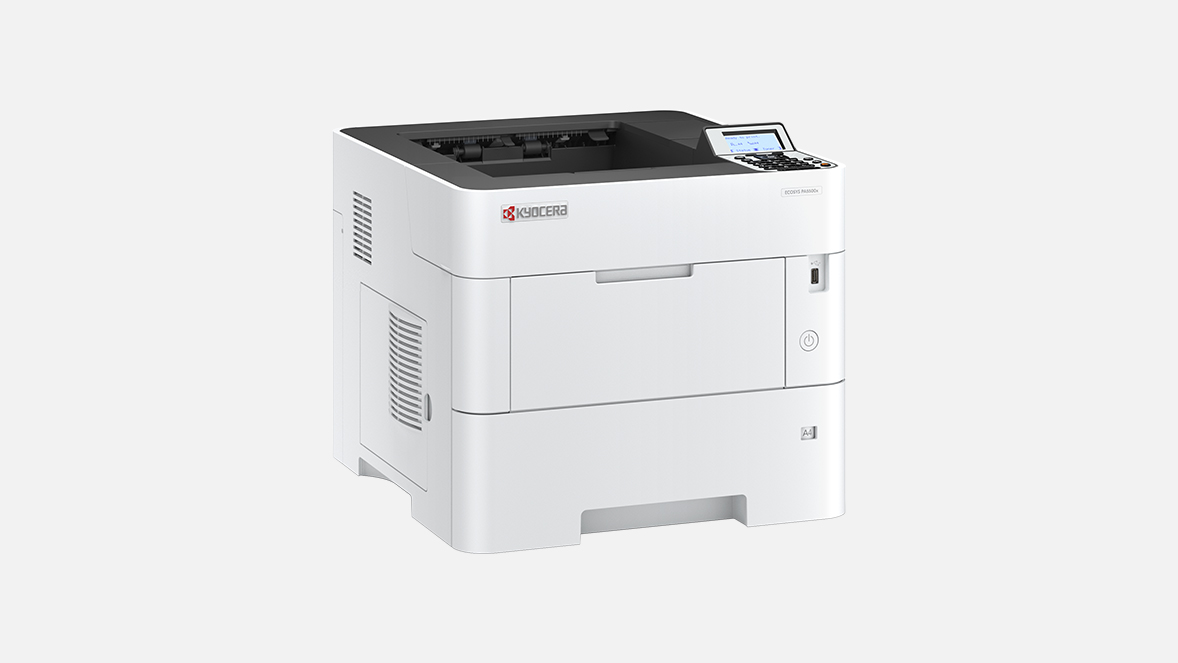

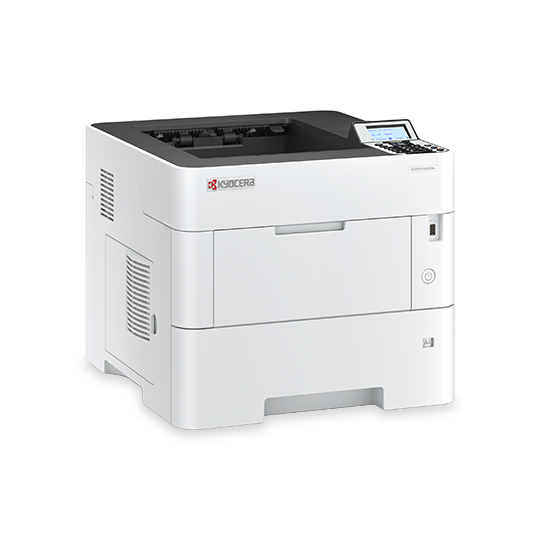

ECOSYS PA5500x

A versatile and robust monochrome printer that will steer your organization towards optimum productivity. With a speed of 57 pages per minute and advanced security features, your business can operate efficiently with the peace of mind that your documents are secure.

Handles up to 2,600 Sheets
Time to first print of 4.5 seconds
Durable machine built with long-life components
Mobile printing compatibilities
High resolution printing (1200 x 1200 dpi)

Engine speed

57 ppm b&w

Resolution

600 x 600 dpi, Up To Fine 1200 dpi

Dimensions (W x D x H)

15.4" x 16.4" x 13.5"

Time to first print

4.5 sec. b&w

ECOSYS makes your office more sustainable and efficient

Kyocera solutions always work with the environment in mind, but the ECOSYS range do this more than any other product on the market.

Printing solutions to make a business run smoothly

Highly regarded by the industry and highly rated by numerous testing organizations, Kyocera’s complete portfolio of reliable, high-value, eco-friendly network laser printers, deliver high resolution output with crisp black and white or vibrant color prints, whether they are text or graphics, for any size workgroup.

Printing solutions to make a business run smoothly

With the introduction of a Kyocera printer, printing can become reliable, quick, and low cost.
Powerful, reliable, and economical

Whether on your desktop or on the floor of your office – be it in color or black and white, with Kyocera, you always achieve the best possible print quality while easily controlling your output costs. Kyocera devices and their components have been designed to be extremely reliable and highly economical.

Powerful, reliable, and economical

For a printer that can be trusted to produce the goods whenever required.
ECOSYS: The sustainable solution

ECOSYS stands for ECOnomy, ECOlogy and SYStem solutions. This concept is unique to KYOCERA and is based on our ceramics technology expertise. ECOSYS provides reliable imaging solutions with incredibly durable long-life internal components, highly economical running costs, and significantly less waste during their lifetime.

ECOSYS: The sustainable solution

Unique to Kyocera, ECOSYS provides long-lasting and environmentally friendly MFPs and printers at an economical cost.

Downloads

ECOSYS PA5500x Drivers
ECOSYS PA5500x Documentation
ECOSYS PA5500x Software

Main Specifications

General

General
Paper Handling
Print

General type

A4 Printer (up to 8.5" x 14")

Engine speed

57 ppm b&w

Warm-up time

25 sec. or less

Power consumption

Printing: 120V: 345 W; 220 – 240V: 345 W; Ready: 33W, Sleep: 0.9W

Input capacity

Single 500 sheet tray, 100 sheet MPT

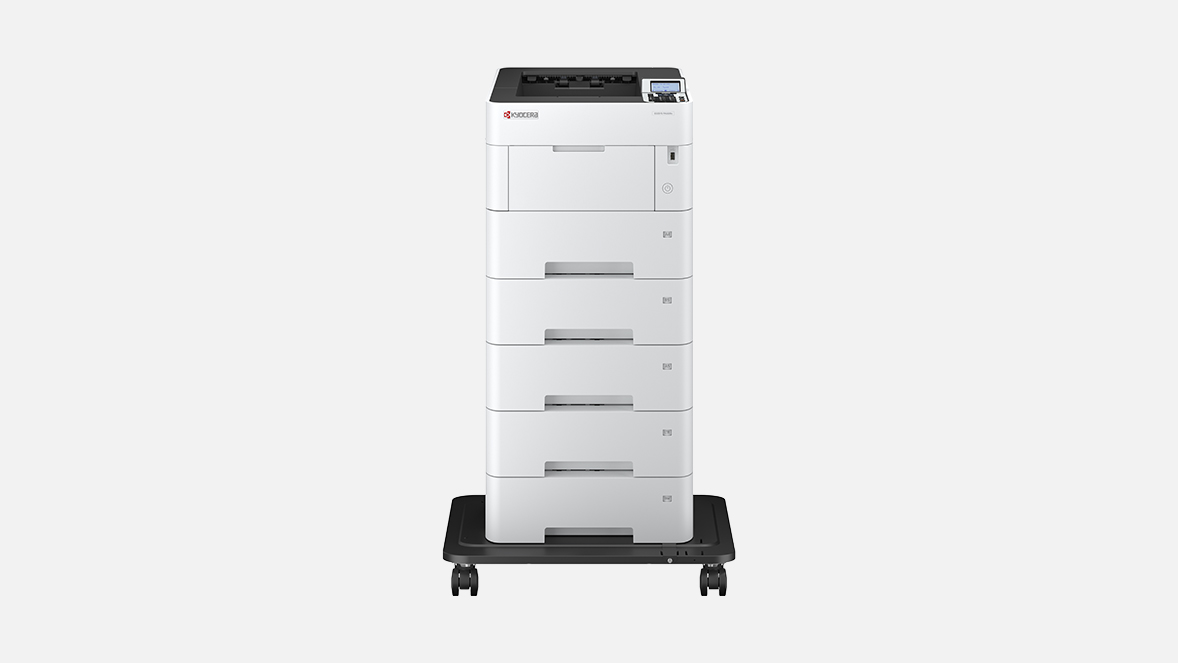

Max. input capacity with options

2,600 sheets

Duplex unit

Standard stackless duplex supports statement (5.5" x 8.5") to legal (8.5" x 14"), 16 lb Bond - 90 lb Index (60 - 120gsm)

Max. output capacity

Standard output tray 500 Sheets; 250 Sheets, Face Down; 250 Sheets, Face Up

Processor

ARM Cortex-A53 Dual core 1.4GHz

Fonts

Outline Fonts 93 (PCL 6/KPDL3), 4 fonts (Calibri), 4 fonts (Cambria), Bitmap (1 Font / 79 Processed Outline Fonts)

Applicable OS

Windows Server 2012, Windows Server 2012 R2, Windows 8.1, Windows 10; Linux, Apple Macintosh OS X 10.5 or Later

Options and Consumables

Paper Handling Options

Paper Handling Options
Consumables
Options

TK-3432
Black Toner (Yield: 21K @ ISO 19752)

CA-3100
Caster kit

Card Authentication Kit (B)
Support for various proximity card readers

Data Security Kit (E)
Kit for hard drive encryption and overwrite

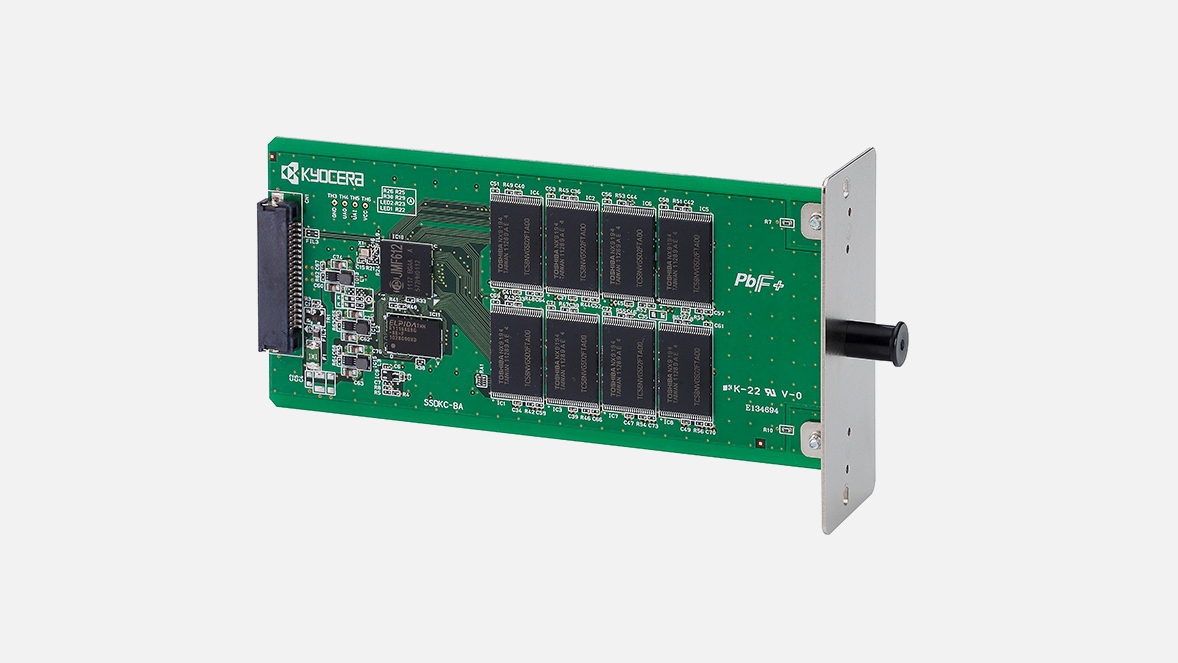

HD-6
SSD memory device (32 GB)

HD-7
SSD memory device (128 GB)

IB-32B
IEEE 1284 compliant NIC

IB-36
Wireless LAN NIC - 98' range and Wi-Fi Direct support

IB-50
Gigabit ethernet board for dual NIC

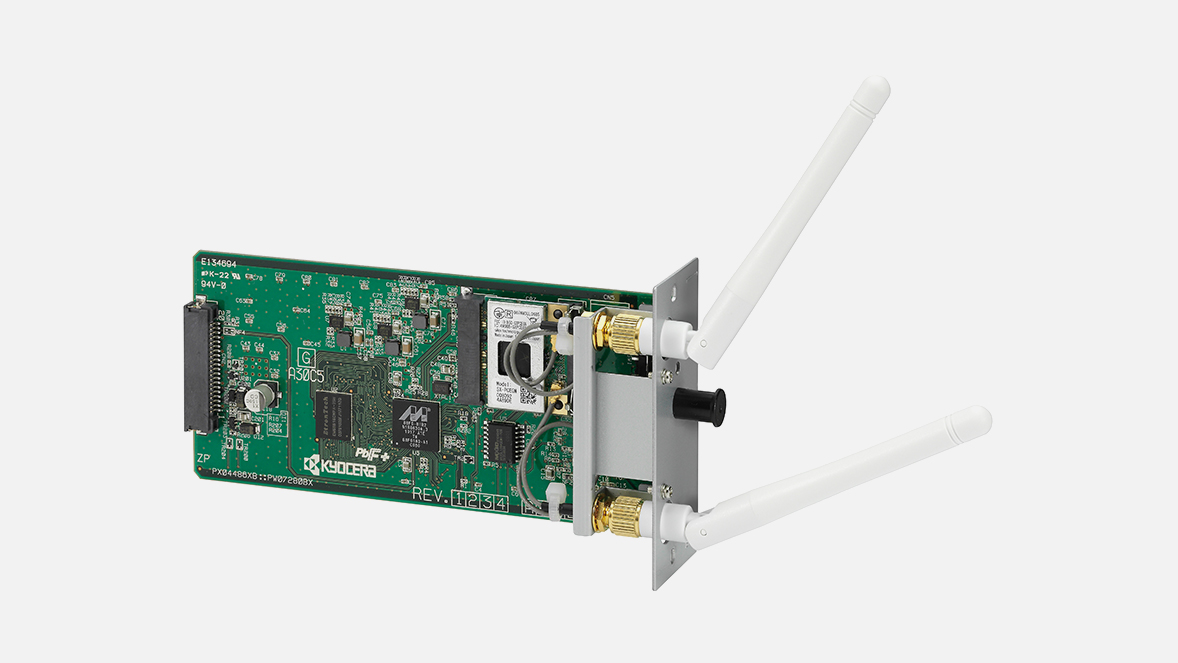

IB-51
Wireless LAN NIC - 328' Range

PB-325
Base unit

PCL Barcode Flash 3.0
PCL Barcode Flash Type D/E

PT-320
250 sheet face-up rear output tray

SD-144-1GB (DDR3)
Printer DIMM memory (1 GB)

SD-144-2GB (DDR3)
Printer DIMM memory (2 GB)

Stand
Copier cabinet stand

UG-33
Thin Print support
